GridLayout in Kivy places widgets into a table-like structure made of rows and columns. Each widget is automatically placed into the next available cell based on the order in which it is added.
Example: In this example, a TextInput is placed inside a GridLayout to show how a single widget fits inside a grid cell.
from kivy.app import App
from kivy.uix.gridlayout import GridLayout
from kivy.uix.textinput import TextInput
class Main(App):
def build(self):
g = GridLayout(cols=1)
t = TextInput(text="Enter name")
g.add_widget(t)
return g
Main().run()
Output
Explanation:
- GridLayout(cols=1) creates one column
- TextInput() creates the input box
- g.add_widget(t) adds the widget to GridLayout
- return g displays the layout
Syntax
GridLayout(rows=None, cols=None)
Parameters:
- rows: number of horizontal rows
- cols: number of vertical columns
- size_hint_x: controls widget width
- size_hint_y: controls widget height
- row_force_default: forces fixed row height
- row_default_height: sets row height
- add_widget(widget): inserts a widget into the grid
Examples
Example 1: In this example, four buttons are arranged in a 2×2 grid with equal size.
from kivy.app import App
from kivy.uix.gridlayout import GridLayout
from kivy.uix.button import Button
class Main(App):
def build(self):
g = GridLayout(cols=2)
g.add_widget(Button(text="A"))
g.add_widget(Button(text="B"))
g.add_widget(Button(text="C"))
g.add_widget(Button(text="D"))
return g
Main().run()

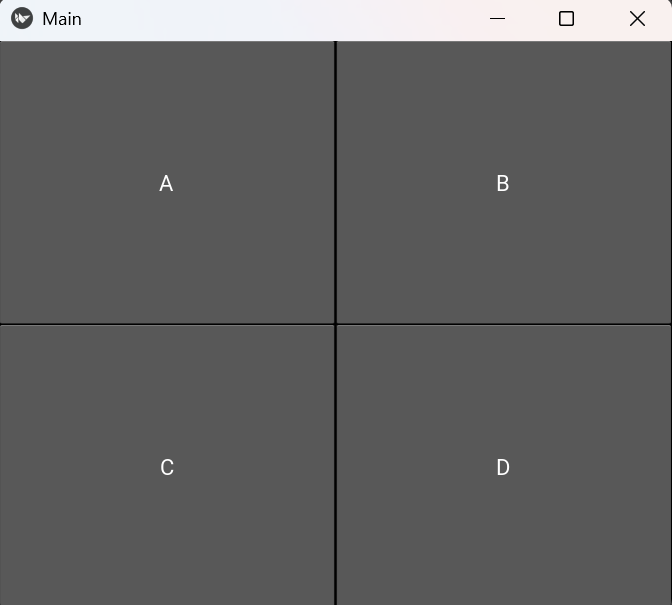

Output
Explanation:
- GridLayout(cols=2) creates two columns
- Button() creates each button
- g.add_widget() inserts widgets into the grid
- Widgets fill cells in left-to-right order
Example 2: In this program, all rows are given a fixed height.
from kivy.app import App
from kivy.uix.gridlayout import GridLayout
from kivy.uix.button import Button
class Main(App):
def build(self):
g = GridLayout(cols=2, row_force_default=True, row_default_height=40)
g.add_widget(Button(text="A"))
g.add_widget(Button(text="B"))
g.add_widget(Button(text="C"))
g.add_widget(Button(text="D"))
return g
Main().run()

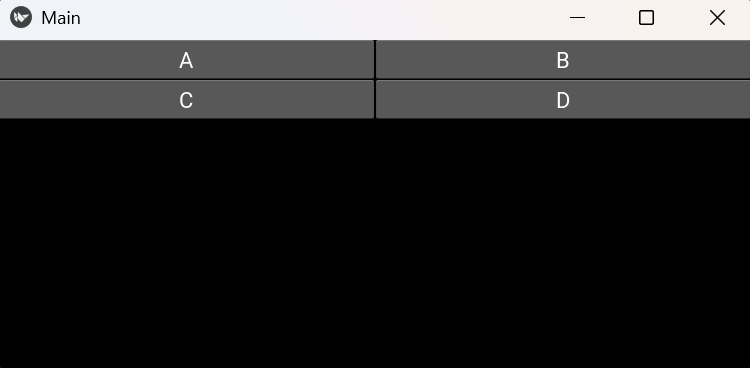

Output
Explanation:
- row_force_default=True forces fixed row size
- row_default_height=40 sets row height
- Button() widgets fit inside fixed rows
- GridLayout keeps all cells aligned
