ScheduledExecutorService is used to schedule tasks to run after a delay or at fixed intervals in Java. It is part of the java.util.concurrent package and extends ExecutorService. It helps in managing background and periodic task execution efficiently.
- Executes tasks after delay or periodically
- Uses thread pool for better performance
- More flexible and reliable than Timer
Declaration
public interface ScheduledExecutorService extends ExecutorService
import java.util.concurrent.*;
import java.util.*;
import java.io.*;
class SchedulerExecutorServiceExample {
public static void main(String[] args)
{
System.out.println(
"A count-down-clock program that counts from 10 to 0");
// creating a ScheduledExecutorService object
ScheduledExecutorService scheduler
= Executors.newScheduledThreadPool(11);
// printing the current time
System.out.println(
"Current time : "
+ Calendar.getInstance().get(Calendar.SECOND));
// Scheduling the tasks
for (int i = 10; i >= 0; i--) {
scheduler.schedule(new Task(i), 10 - i,
TimeUnit.SECONDS);
}
// remember to shutdown the scheduler
// so that it no longer accepts
// any new tasks
scheduler.shutdown();
}
}
class Task implements Runnable {
private int num;
public Task(int num) { this.num = num; }
public void run()
{
System.out.println(
"Number " + num + " Current time : "
+ Calendar.getInstance().get(Calendar.SECOND));
}
}
Output:
A count-down-clock program that counts from 10 to 0
Current time : 28
Number 10 Current time : 28
Number 9 Current time : 29
Number 8 Current time : 30
Number 7 Current time : 31
Number 6 Current time : 32
Number 5 Current time : 33
Number 4 Current time : 34
Number 3 Current time : 35
Number 2 Current time : 36
Number 1 Current time : 37
Number 0 Current time : 38
Explanation: This example demonstrates a countdown clock from 10 to 0 using ScheduledExecutorService. A scheduler is created using Executors.newScheduledThreadPool(), and tasks are scheduled with delays of (10 - i) seconds.
Note: Execution time may vary depending on the system clock.

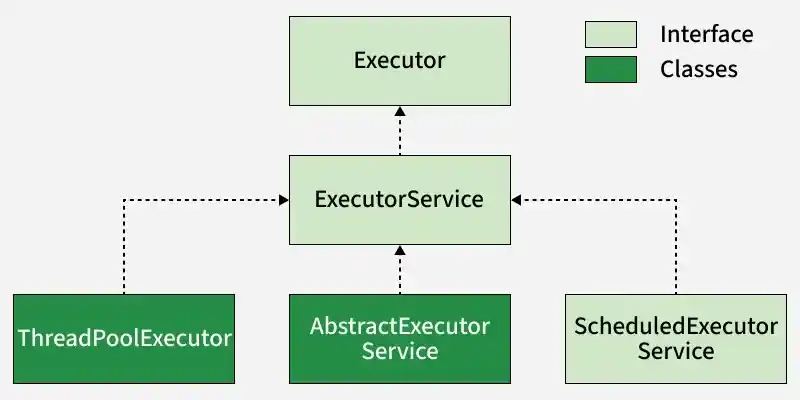

The Hierarchy of ScheduledExecutorService
Implementing class
The implementing class of ScheduledExecutorService is ScheduledThreadPoolExecutor.
Creating a ScheduledExecutorService Object
- ScheduledExecutorService is an interface, so it cannot be instantiated directly.
- The Executors class (from java.util.concurrent package) provides factory methods to create its objects.
Factory (Overloaded)Methods of ScheduledExecutorService:
1. newScheduledThreadPool(int corePoolSize)
- Creates a scheduled thread pool with the given corePoolSize
- Returns a ScheduledExecutorService object
- This object can be downcasted to ScheduledThreadPoolExecutor
- Used to: Execute tasks after a delay and Execute tasks periodically
Syntax:
public static ScheduledExecutorService newScheduledThreadPool(int corePoolSize)
2. newScheduledThreadPool(int corePoolSize, ThreadFactory threadFactory)
- Creates a scheduled thread pool with the given corePoolSize
- Returns a ScheduledExecutorService object
- The ThreadFactory: Is used to create new threads and Allows customization (thread name, priority, etc.)
- Can also be downcasted to ScheduledThreadPoolExecutor
Syntax:
public static ScheduledExecutorService newScheduledThreadPool(int corePoolSize, ThreadFactory threadFactory)
Methods of ScheduledExecutorService
METHOD | DESCRIPTION |
|---|---|
| schedule(Runnable command, long delay, TimeUnit unit) | Submits a one-shot task that becomes enabled after the given delay. |
| schedule(Callable<V> callable, long delay, TimeUnit unit) | Submits a value-returning one-shot task that becomes enabled after the given delay. |
| scheduleAtFixedRate(Runnable command, long initialDelay, long period, TimeUnit unit) | Submits a periodic action that becomes enabled first after the given initial delay, and subsequently with the given period; that is, executions will commence after initialDelay, then initialDelay + period, then initialDelay + 2 * period, and so on. |
| scheduleWithFixedDelay(Runnable command, long initialDelay, long delay, TimeUnit unit) | Submits a periodic action that becomes enabled first after the given initial delay, and subsequently with the given delay between the termination of one execution and the commencement of the next. |
Methods declared in interface java.util.concurrent.Executor
METHOD | DESCRIPTION |
|---|---|
| execute(Runnable command) | Executes the given command at some time in the future. |
Methods declared in interface java.util.concurrent.ExecutorService
METHOD | DESCRIPTION |
|---|---|
| awaitTermination(long timeout, TimeUnit unit) | Blocks until all tasks have completed execution after a shutdown request, or the timeout occurs, or the current thread is interrupted, whichever happens first. |
| invokeAll(Collection<? extends Callable<T>> tasks) | Executes the given tasks, returning a list of Futures holding their status and results when all complete. |
| invokeAll(Collection<? extends Callable<T>> tasks, long timeout, TimeUnit unit) | Executes the given tasks, returning a list of Futures holding their status and results when all complete or the timeout expires, whichever happens first. |
| invokeAny(Collection<? extends Callable<T>> tasks) | Executes the given tasks, returning the result of one that has completed successfully (i.e., without throwing an exception), if any do. |
| invokeAny(Collection<? extends Callable<T>> tasks, long timeout, TimeUnit unit) | Executes the given tasks, returning the result of one that has completed successfully (i.e., without throwing an exception), if any do before the given timeout elapses. |
| isShutdown() | Returns true if this executor has been shut down. |
| isTerminated() | Returns true if all tasks have completed following shut down. |
| shutdown() | Initiates an orderly shutdown in which previously submitted tasks are executed, but no new tasks will be accepted. |
| shutdownNow() | Attempts to stop all actively executing tasks, halts the processing of waiting tasks, and returns a list of the tasks that were awaiting execution. |
| submit(Runnable task) | Submits a Runnable task for execution and returns a Future representing that task. |
| submit(Runnable task, T result) | Submits a Runnable task for execution and returns a Future representing that task. |
| submit(Callable<T> task) | Submits a value-returning task for execution and returns a Future representing the pending results of the task. |
